A one-layer stencil is one cut, one spray, one color, done in a minute. A multi-layer stencil is the same image broken into three or four sheets, and the whole thing lives or dies on one skill nobody talks about until they have already ruined a wall: getting layer two to land exactly where layer one did. Miss it by two millimeters and the face goes cross-eyed. Get it right and a flat picture turns into a portrait with shadow and depth.
This is how you decide which kind to cut, how to split a photo into layers in the first place, and the registration tricks that make the layers stack clean every time.
What a single-layer stencil actually is
One sheet. One color. Everything you want painted is a hole, everything you want to stay blank is mylar, and the bits of mylar that float in the middle of a hole are held in place by bridges. You cut it, tape it down, spray, peel. The James Dean on a t-shirt, the Che, the stop-making-stupid-people-famous tag, those are single-layer. High contrast, no gray, just the shape.
Single-layer is the right call more often than people think. If the image reads as pure black-on-white, a logo, a silhouette, text, a sharp face with strong shadows, a second layer adds nothing but work and a new way to screw it up. It is fast, it is forgiving, and you can spray fifty of them in an afternoon. The limit is obvious the second you want a third tone. One layer gives you two values, painted and not painted, and that is the ceiling.
The catch with single-layer is bridges. Every island of mylar inside a hole needs a strip connecting it to the rest of the sheet or it falls out. The eye of a portrait, the counter inside a letter O, the gap between two fingers. Bridges are their own craft, and if you are cutting by hand they are where most stencils die. We covered that in full in how to hand-cut a stencil: blades, bridges and clean lines.
What a multi-layer stencil adds, and what it costs
A multi-layer stencil is one image split across two or more sheets, each one carrying part of the picture. Spray sheet one, let it dry, line up sheet two on top, spray, repeat. Each layer can be a different color, or the same family of tones, and where they overlap they build the image up the way a print does.
Two reasons to do it. Color, if you want red and black and a skin tone in the same piece, that is one sheet per color. Or tone, if you want a black-and-white photo to read as a real photo with mid-grays and not just hard black shapes. That second one is where multi-layer earns its keep, and it is the whole reason portraits work as stencils at all.
The cost is time and risk. Every layer is another cut, another dry, another alignment, and every alignment is a chance to land it wrong. A one-layer stencil has no registration problem because there is nothing to register against. The moment you add a second sheet, lining them up becomes the hardest part of the job, harder than the cutting. So the rule is simple. Use the fewest layers that get the image you want. Do not add a layer to show off.
How to split a photo into layers
This happens in an image editor before you cut anything. The job is to take a continuous-tone photo, which has thousands of shades, and chop it down to a handful of flat tones, one tone per layer. Two tools do almost all of it.
Threshold turns the whole image into pure black and white at a line you set. Everything darker than the line goes black, everything lighter goes white. That gives you a single-layer stencil. Drag the slider and watch the face appear and disappear, you are looking for the point where it still reads as the person with the least amount of black.
Posterize is the multi-layer tool. It crushes the photo down to a set number of tones. Set it to two and you get black and white, same as threshold. Set it to three and you get black, one gray, and white. Set it to four and you get black, dark gray, light gray, white. Each of those tones becomes one layer. For most portraits, three tones is the sweet spot: a dark layer, a mid layer, and the paper or wall showing through as the light.
So a three-layer grayscale portrait works like this. Convert to black and white, posterize to three levels, then build one stencil per tone. The light is whatever surface you are spraying on, no layer needed. The mid-gray is layer one. The dark is layer two. Where you spray both, it reads darkest. The trick is letting the layers do the mixing instead of trying to cut every shade.
If you are working with dots instead of flat tones, that is halftone, and it is a different and deeper rabbit hole. The full method is in how to make halftone stencils in Photoshop: the complete guide from screen to street.
Cut every layer from one master at the same size
Here is the part people get wrong before they even pick up a blade. All your layers have to come from the same master file at the same dimensions. If you split the photo, then resize the dark layer separately from the mid layer, the outlines will not match and nothing you do at the wall will save it.
Do it this way. Build the full posterized image at the final size you want to spray. Put your registration marks on that master, in the same spot on every layer, before you separate anything. Then export each tone as its own layer from that single file. Because they all came from one document at one size, the shared outlines line up by definition. The eyes sit where the eyes sit on every sheet. Your only job at the wall is to get the marks to match, and the rest follows.
This is also why the registration marks go on at the start, not after. They are not decoration. They are the only thing telling each sheet where it belongs relative to the others, so they have to be born on the master and copied to every layer identically.
Registration: getting the layers to land
Registration is lining up each new layer with the one already sprayed. Get this and multi-layer is easy. Miss it and the whole image smears. Four methods, roughly in order of setup time.
Registration marks. The baseline. Cut a small cross or a circle into the same corner spots on every layer. Spray layer one. While the marks are still open, pencil a tiny dot through each one onto the surface, or stick a square of low-tack masking tape under each mark and pencil onto that so you never draw on the actual wall. Now you have anchor points. Every later layer lines its own marks up to those dots. Cover the marks with a scrap of tape before you spray so they do not fill in with paint.
The hinge or tab method. Tape the top edge of each stencil to the surface so it works like the cover of a book. You can lift the sheet, check the layer underneath is dry, drop it back, and it falls into the same spot every time because the hinge holds the position. For a wall, painter's tape along the top edge. For paper or canvas on a board, tape one edge down as the hinge. This kills the biggest cause of misalignment, which is the sheet wandering while you fuss with it.
The acetate overlay. Borrowed from screen printers and worth stealing. Tape a sheet of clear acetate over your work area, hinged on one side so it folds back like a page. Print or trace the full image onto the acetate. Slide your paper or position your stencil so it matches the acetate exactly, mark the spot, then fold the acetate out of the way and spray. Every layer registers to the same acetate guide instead of to the previous spray, so errors do not stack.
The frame jig. If you spray the same size piece over and over, build a simple jig. Glue or screw strips of wood or thick board onto a flat base in an L-shape, so the corner of every stencil and every sheet of paper bumps into the same stop. Drop a sheet in, it lands in the exact corner, every time, no measuring. A letterpress ruler or a strip of mount board bumped into the corner does the same job for a one-off. This is the fastest way to register a run because the position is mechanical, not eyeballed.
Spray order and dry time between layers
Spray lightest to darkest. This is not a preference, it is physics. Dark paint covers light paint, light paint does not cover dark. If you lay your light gray over a dried black, the black shows through and the gray is muddy and weak. Lay the dark over the light and it sits clean on top exactly where you want it. So light layer first, then mid, then dark, then any final black detail line on top of everything.
Between every layer, the one underneath has to be bone dry. Not nearly dry. Dry. Wet paint under a fresh stencil does two things, both bad: it smears when the new sheet touches it, and a wet surface lets the stencil slide instead of gripping, which wrecks your registration. The test is the fingertip. Touch the painted area lightly. If any paint comes off on your finger, it is not ready. Spray paint usually needs several minutes between coats, longer in cold or damp air. A hair dryer on a low warm setting speeds it up if you are impatient, but do not blast it hot or you will lift the paint.
The same light-pass rule from single-layer work still applies on every layer. Hold the can back, build the color in thin passes, let each pass tack up. Thin coats dry faster, which means less waiting between layers, and they bleed less, which matters more on multi-layer because a bleed on layer one is locked in under everything that follows.
When it goes wrong: misalignment, bleed, too many layers
Two things break multi-layer stencils, and both have a cause you can point at.
Misalignment. If a layer lands off, the cause is almost always one of three things: the previous layer was still wet and shifted, the sheet moved while you sprayed, or your marks were not on the master in matching spots. Fix the first with patience and the fingertip test. Fix the second with a hinge or a jig and a light mist of spray adhesive on the back of the stencil to hold it flat and still. Fix the third upstream by always cutting from one master. There is no rescue at the wall for layers cut at different sizes, you go back and recut.
Color bleed. Paint creeping under the edge of the sheet. The fix is the same as single-layer: back the can off, fifteen inches instead of ten, spray in short bursts, press the stencil flat. On multi-layer it bites harder because every bled edge is permanent under the next layer, so it is worth being slower and lighter than you would be on a one-off.
Too many layers. There is a point where each new layer adds more risk than image. For spray work, three tonal layers gets you a real portrait. Four buys you a little more depth. Past five or six you are stacking alignment errors faster than you are adding detail, and the registration that was easy at three becomes a nightmare at seven. If you find yourself cutting a seventh layer to fix something, the answer is usually a better tonal split at three layers, not more sheets. Fewer layers, cut from one master, lined up clean, beats a tower of layers every time.
Three ways to actually make one
Now you know which kind to cut and how to stack the layers. Here is how to get one made, at whatever level you are working.
Do it yourself. Posterize your photo to three tones in any image editor, drop registration marks on the master, export each tone, and cut the sheets by hand or on a machine. Spray light to dark, dry between every layer, register off your marks. Everything above is the full method.
Use the free plugin. If the image-editing part is the wall you keep hitting, the free Stencilizer by Schwingo plugin does the tonal separation and stencil prep for you inside Adobe. Grab it from tastebueno.com/pages/stencilizer-by-schwingo and it handles the layer split so you can get straight to cutting.
Have us make it. Or skip all of it. Upload a photo to the Custom Stencilizer, pick your size, and we cut the layers from one master, registration marks included, and ship you a laser-cut multi-layer stencil ready to spray. You line it up, spray it, and peel it back to a portrait with real tone in it.
Sources

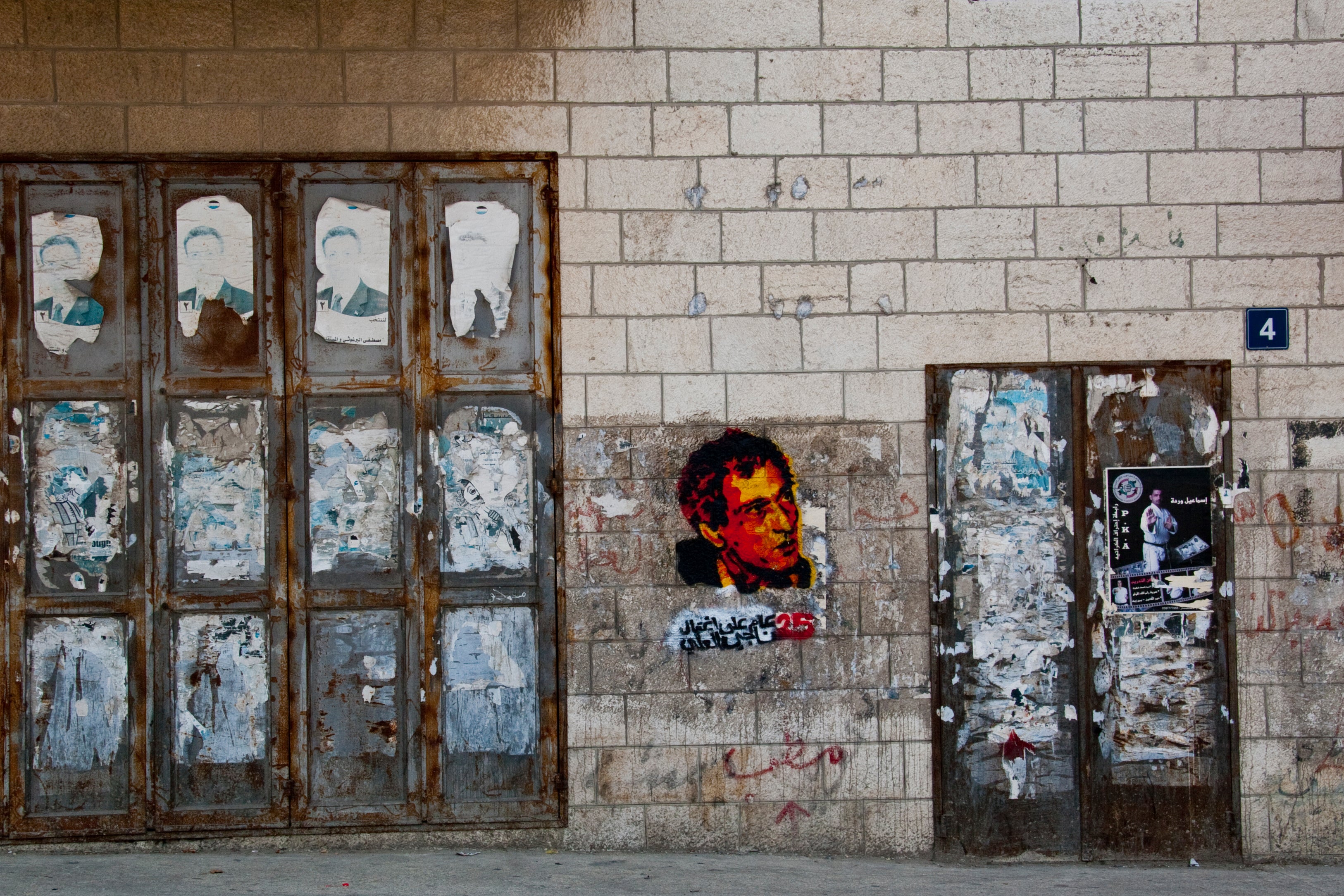

- Naji al-Ali graffiti, Ramallah, 2012 — Amer Shomali / Wikimedia Commons (CC BY-SA 3.0)
